LOra | UPMC

A smart voice assistant to better connect patients with UPMC's healthcare services

Team

Jason Wang, Kristen Cai,
Semina Yi, Andrew Sim

Role

User Research
Concept Development
UX Design
Interface Design
VUI Motion Design

Tools

Figma
Voiceflow
AfterEffects
Premiere Pro

TImeline

Aug - Oct. 2022 (6 Weeks)

Overview

In my Graduate Education at Carnegie Mellon University, we had been challenged with choosing a client at Pittsburgh to integrate an intelligent voice user interface system into the service.

We chose the University of Pittsburgh Medical Center (UPMC) as our client. Although we only had 6 short weeks to complete the project, we didn't shy away from the challenge of healthcare research.
‍
Our research has provided problem space in Making Appointments, Navigating the Hospital, Access to Hospital Services, and Receiving Test Results. Our final design, Lora, is a smart assistant that uses professional and warm conversations to better connect healthcare services with hospital Patients

Design objective

​Designing an application with voice user interface in order to optimize the experience of connecting patients with hospital services

OutCome: concept video

Hi, I am Lora
How may I help you today?

LORA

Your personal assistant to better connect you with healthcare services

OutCome: INterface design

Lora better ​connects the users with healthcare services

Find a Doctor

To find care, the user could ask Lora to find a physician or provide suggestions on the type of specialty to see.

Calendar Scheduling

To better help the users with scheduling, Lora also looks into their calendar to avoid appointment conflicts.

Using Accommodation

To optimize patients' experience, Lora will inform them about the types of accommodation services UPMC offer.

Review Test Results

Because most tests are sent to the patient prior to the physician's note, Lora provides options for the patient to wait for the physician's note or see the results in advance.

Compare Test Results and Define Medical Terms

Lora helps users to define medical terms and compare results to previous tests to better understand their progress of change.

Kiosk Check-in

By upgrading the current kiosks with Lora, patients can experience a check-in process without waiting in long lines at the front desk.

understanding the client and their applications

UPMC's Design Opportunities

UPMC is an old yet prestigious hospital; however, many of the designs are outdated. Therefore, we did an I/A Audit on their My UPMC app to learn and find insights into the current user flow. We discovered that:

1) my upmc i/a audit

The use of text-dominant GUI 🤯 is forcing the user to go through a lot of reading and redundant steps.‍

2) Studying UPMC's fragmented Digital ecosystem

The current digital ecosystem is in bits and pieces 🌀, with many actions that need to be redirected to a browser or another app, due to the lack of app functionality.

LORA

Your personal assistant to better connect you with healthcare services

discovering the pain points

Common pain points in the hospital

Through our on-site interview at UPMC Presbyterian of a physician, a front desk staff, and 8 hospital visitors, we not only received insights into what these professionals think their system and patient service, as well as these visitors' own frustrations and pain points during hospital experiences.

Scenario user journey with painpoints

1. scheduling issues 📅

Phone calls to make appt. results in wait times and voice mail (est. 5 min) and finding the right specialties without referral requires knowledge or research.

2. wayfinding problems 📍

Near 33% of first-time visitors get lost. The route to the right facilities is confusing and difficult to find the right facility. It also detains injured visitors’ mobility.

3. unfamiliarity with services 🦻

Many visitors are not aware of the various courtesy services, like escorts, and interpreters; n risking the quality of care and decreasing patient satisfaction.

4. test interpretation issues 💉

A rich insight is that most test results are sent to patients before Doctor's clearance, resulting in a lot of self-misinterpretation of the results.

LORA

Your personal assistant to better connect you with healthcare services

why does it matter?

Reasons to improve Patient Experience

A streamlined experience would not only make the patient happy but also reduces the workloads of the physicians and staff in the hospital. Most patients' struggles are compensated by additional staff effort.

UX Design: Site map

Establishing the scope of the project

The features of VUI are the primary scope as it helps to make the app more intuitive for the user to access features. Additionally, the VUI enhances the human aspect, making it easier for users to find the information intuitively, without having to go through a lot of reading or redundant steps in a Graphical User Interface (GUI).

LORA

Your personal assistant to better connect you with healthcare services

UX Design: refined user journey using lora

New User Journey with Features

Our team brainstormed features that could address the pain points and tasks identified through our research. We started by mapping out the entire patient experience, from scheduling an appointment to receiving follow-up care. Here are a few of many refined journeys from feature brainstorming:
‍
Journey 1)
During Care Visits, patients may need to navigate to different locations, either the doctor's office or the lab center. This can be achieved through the use of an in-app hospital map feature 🗺️ — powered by VUI.
‍
Journey 2)
Post-Care, patients may need to understand their test results, which could be achieved through features that compare previous test results and interpret medical terms 📖🔍 — with Lora as an AI-language interpreter, to help patients better understand their results and alleviate any confusion that patients may have.

UX Design: user flow

Designing the User Experience

I led the creation of user flows that take into account both current and potential features. By analyzing these flows, the team identified pain points in the current user journey and worked to solve them through redesign, rearrangement, and the addition of new interactions. This process allows us to create intuitive and seamless experiences for our users that make interacting with our products effortlessly and enjoyable.

USER FLOW: Booking an Appointment
1) A patient is experiencing symptoms that they are unsure of what type of doctor they should see. They turn to Lora for help. By simply sharing their symptoms, Lora provides suggestions for doctors who specialize in treating those symptoms. If the patient is still unable to make a decision on an unhappy path, Lora directs them to call the clinic for further assistance.

2) To place importance on timely and efficient healthcare. We redesigned our time scheduling process with the help of Lora. With permission, Lora accesses the patient's calendar to check for conflicts and remember the appointment time, reducing the chance of missed appointments and ensuring a smooth schedule for the clinic.

3) Patients are reminded of the services and accommodations UPMC offers prior to confirming the appointment. It is placed here because it gives the hospital time to prepare for the patient's needs in advance. Additionally, by tracking the patient's usage of these services, if the patient has a tendency not to use them, Lora would stop offering these services in future appointments, making the process more streamlined.

UX Design: concept and testing

Wireframing the Application

We started wireframing and tested out two types of concepts with VUI. One is the heading-dominate design on the left, and the other is a Conversational UI 💬 on the right. We wanted to see which design would be more intuitive for users to navigate and complete their tasks, went to do an A/B testing among our peers.

2 ui concepts: to be a/b tested

Overcoming the Challenges of the Initial Wireframe

The initial wireframe presented a straightforward design but received feedback that it lacked the ability to keep track of past interactions and the interface was less intuitive, without leveraging the full potential of VUI.

wireframe concept: heading dominate ui

Balancing Intuitiveness with Functionality

Ultimately, I discovered that the Conversational UI design 💬 had a higher success rate, as it provided a more natural human-like interaction. It is also easier for users to see their dialogue history, and past actions and complete their tasks. The end result was a more efficient and streamlined task completion process.

(validated) wireframe concept: conversation ui 💬

refined ui after a/b testing

Designing the VUI

Define Lora

Design System

By aiming to make our visual system to be reliable, caring, and calming, yet professional, the team created our new palette consisting of blue and purple.

Logo Design

Considering the symbol as a dynamic logo, I led the design by considering how the shape would be in static and motion. The roundness and gradient of this design have successfully transformed what was an overused iconography into a warm and caring symbol for Lora.

Hi, I am Lora

VUI Motion States

Resting
Awake
Listening
Speaking
Processing
Success
Confused
Error

Motion Transitions

graphical user interface

Activating Lora

Understanding universal design principles and patient privacy inside the hospital, we looked into prototypes of voice activation for users to achieve their goals. The user can activate Lora by saying "Hey Lora", tapping to talk, or inputting via keyboard.

Mobile Interface

Understanding universal design principles and patient privacy inside the hospital, we looked into prototypes of voice activation for users to achieve their goals.

VUI Integration

After initiating Lora, the App moves to a conversation page. The VUI states are designed to complement GUI patterns on the screen.

Home

Subtle Idle

listening

Motion + Text Feedback

response

Conversation Window

proccessing

Processing Cues

Mobile GUI

The team covered moments from Pre-visit, In-Hospital, and Post-visit. In Pre-visit, booking is utilized by the VUI assistant to optimize the user experience of finding a doctor for a symptom. The user will go through choosing a provider, scheduling, and requesting accommodations in a form of a friendly and casual conversation.

Pre-vist (Booking)

find care
scheduling
accommodation
confirmation

in-hospital

post-visit

navigation
test result
test comparison
translation

in hospital experience

Kiosk Interface

To help patients have a better check-in experience inside the hospital, we introduce using a kiosk to optimize the flow. Understanding universal design principles and patient privacy inside the hospital, we looked into prototypes of voice activation for users to achieve their goals.

Check-in: Verification

To reduce the wait time to check in, patients could simply tap their phones to check-in. This avoids the steps of inputting their names, birthdays, and biometric verification (some feel uncomfortable).

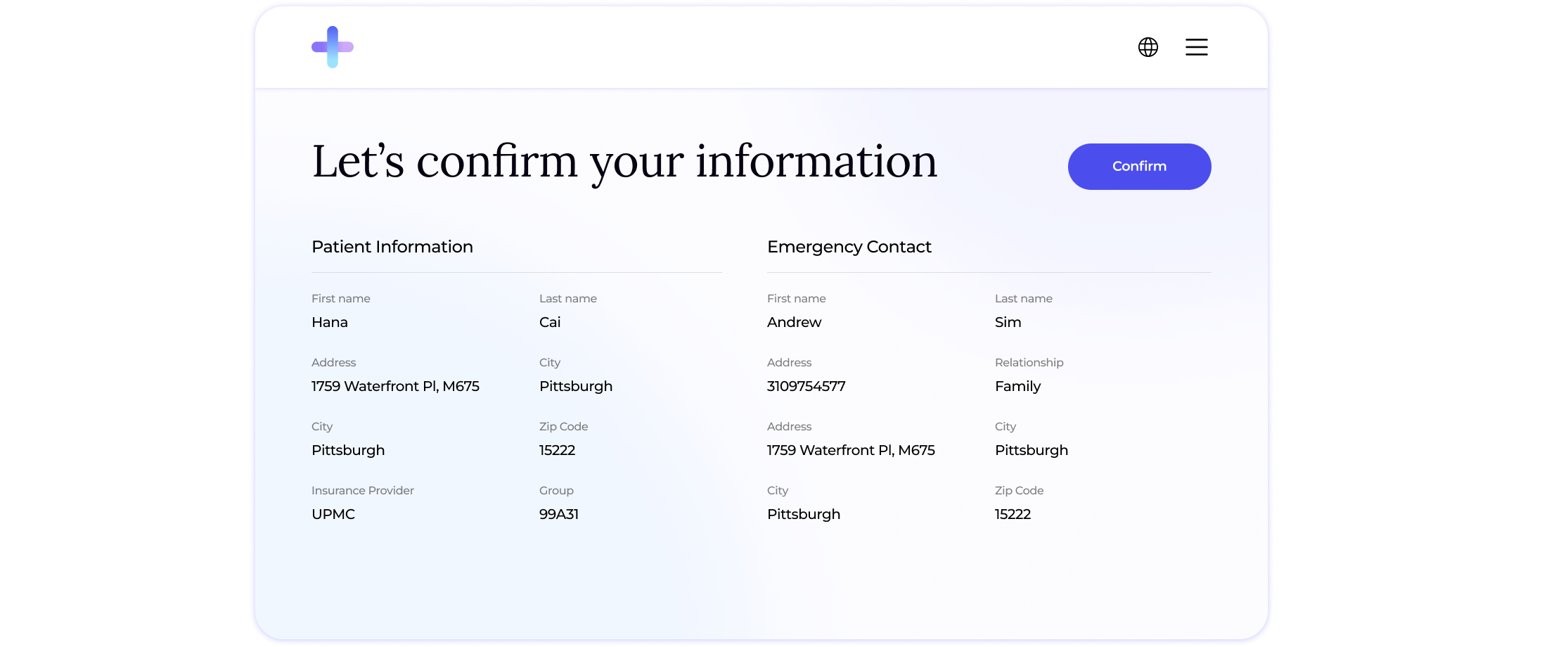

Check-in: Confirmation

To confirm if there are errors or if information is up to date.

Appointments Overview

To better guide a patient's hospital experience, Lora kindly reminds the patient of all the scheduled appointments for today, while providing direction to help them navigate to the right office.

Beacon Support: Escort

The Kiosk could also work as a beacon support or a location pin for special services like an escort. Instead of calling the office and struggling to communicate where you are, patients could request the service directly at the kiosk and wait near the kiosk before the help arrives.

impacts: What Lora Achieve

Assistance for UPMC Patient

We believe Lora would help UPMC to build a great healthcare ecosystem, it will not only improve patients' experience but also better create less workload for the understaffed healthcare professionals. The current features are designed to focus on the top pain points from our research. Moving forward with more added functionality, Lora could be more comprehensive and we see potential that not just UPMC, but other hospitals could look into how smart AI and VUI could be used to bridge patient experience with healthcare services.

Lora Improves booking experience to get the right care and reduce the workloads for the office
Lora guides patient with navigation to reduce the chance of getting lost
Lora helps patients to understand test results without the confusion and stress
